9kwh Lithium Battery DIY Pack

The fashion 9kwh Lithium Battery DIY Pack is a customizable energy storage solution for households, businesses, and off-grid applications.

Send Inquiry

Product Description

The newest 9kwh Lithium Battery DIY Pack can be charged during the day and provide energy during the night hours when the solar panels are not working. They have a larger capacity and can store more energy than other types of batteries. You will be able to use your home appliances during the night instead of having to rely on diesel-powered generators or other types of equipment that consume too much energy. The type of lithium-ion battery used in 5kwh Lithium Battery Stackable is lithium iron phosphate (LiFePO4), which is known for its high energy density, long cycle life, and high safety standards.

One Pack
We offer all necessary components in one package,you don’t need to buy anything else by yourself.

Easy Work
The 9kwh Lithium Battery DIY Pack is easy to assemble,you can just follow our instruction video to do it by yourself.

Elegant look
The 9kwh Lithium Battery DIY Pack is just as elegant look as your inverter, your home appliances,your neighbours will never find out that you did it yourself.

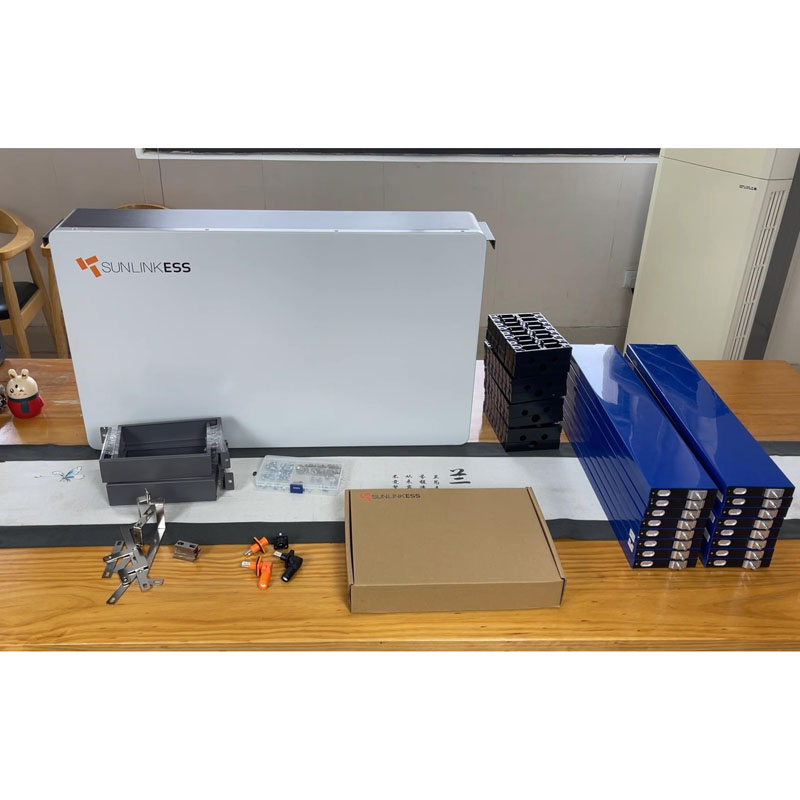

When you receive the 9kwh Lithium Battery DIY Pack, please check the parts list first：

9kwh Battery Parts List:

No.	Item Name	Qty	Unit	Check	No.	Item Name	Qty	Unit	Check
1	Blade cell 3.2v184ah (including cell holders)	16	pcs		11	Bus bar #5	14	pcs
2	Terminal port(+/-)	4	pcs		12	Bus bar #6	1	pcs
3	Power switch	1	pcs		13	M3*8 screws kit	9	pcs
4	BMS 16s100A With Customized cell wire	1	set		14	M4*8 countersunk screw	12	pcs
5	Insulated wire sleeve	1	pcs		15	M4*10 screws kit	16	pcs
6	Battery case (including mounting bracket)	1	pcs		16	M5*10 screws kit	26	pcs
7	Bus bar#1	1	pcs		17	M6*12 screws kit	8	pcs
8	Bus bar #2	1	pcs		18	M6 nut	32	pcs
9	Bus bar #3	1	pcs		19	ExpansionM8*100	6	pcs
10	Bus bar #4	1	pcs		20	Battery cable 4AWG	3	meter

Then please follow the steps below or the installation video to assemble it. If you need anything, please feel free to contact us.

Model	9Kwh	14Kwh	15Kwh
Battery Type	LiFePO4 Blade Cell	LiFePO4 Cell	LiFePO4 Cell
Battery Grade	Brand New Grade A Cell
Brand	SVOLT	HITHIUM/EVE/REPT*i	CATL/EVE/BYD/REPT'i
Nominal Voltage	51.2V
Rated Capacity	184Ah	280Ah	304/3lOAh
Nominal Current	1OOA/15OA/2OOA *2
Nominal Energy	9.42Kwh	14.336Kwh	15.56Kwh/15.87Kwh
Operating Temperature*3	0℃~ 55℃(Charging) 20℃~ 60℃(Discharging)
General
Installation	Wall-mounted	Floor-mounted	Floor-mounted
Battery Box	Steel*4
Dimension(L/W/D)	850500150mm	880520170mm	880,520*170mm
Weight	76kg	113kg	113kg
Scalability	Up to 16 units
Protection Class	IP31
DOD	90%
Communication	CAN2.0/RS485
Warranty	5 Year product warranty
Guaranteed Cycles	>6000・5

*1.Battery Cell is optional.
*2.BMS current is optional.
*3.When the temperature is below 0℃ or above 45℃, the performance will be limited.
*4.Customized logo & DIY UV printing are available.
*5.Test conditions:0.2C charging/discharging,@25℃,80%DOD.

Situation
Due to unstable power sources and unreliable grid connections, there are frequent power outages in rural areas. Not only that, but rising electricity prices are becoming more and more worrying.

Application
Sunlink’s DIY Lithium Battery Pack can realize off-grid and grid-connected power generation functions and realize two-way flow control of electric energy, which is suitable for small-capacity home power backup scenarios.

Solution
By installing Sunlink’s DIY Lithium Battery Pack, people’s rural electricity problem is solved, not only at low cost but also in line with their environmental protection concept.
