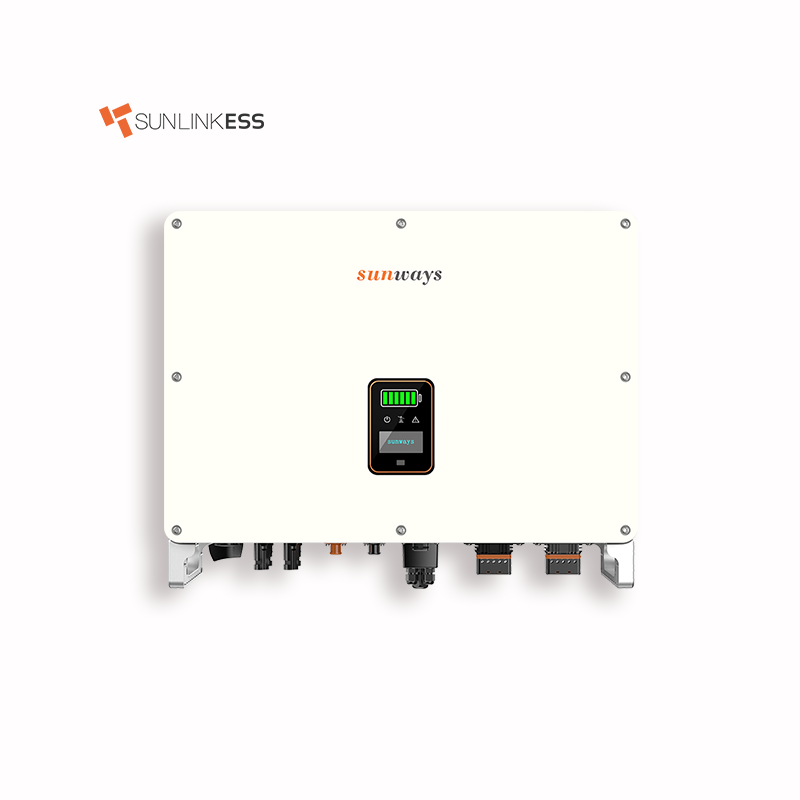

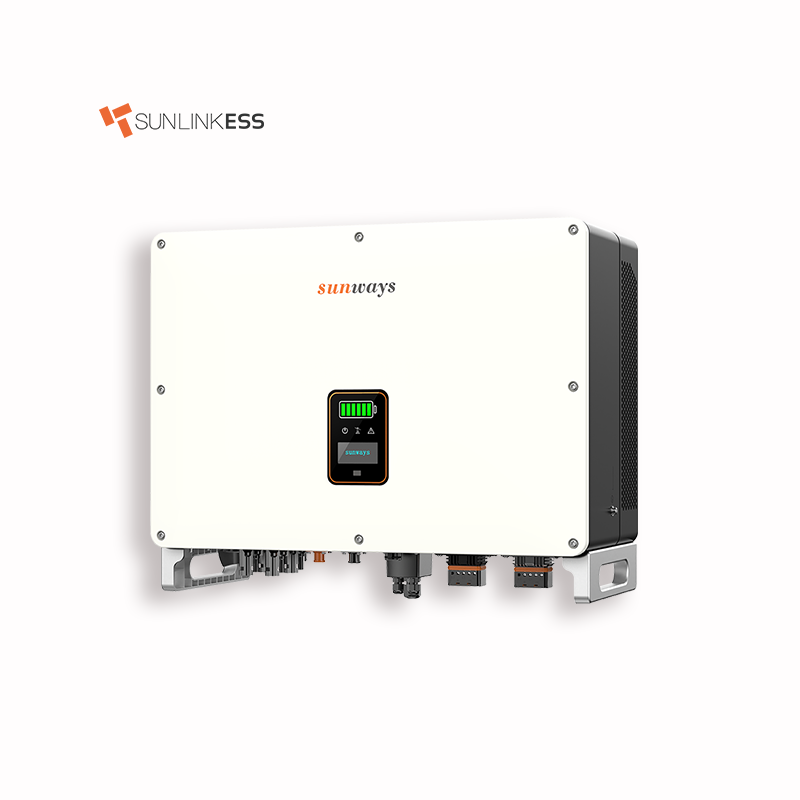

Sunways 25KW Three Phase Hybrid Inverter
Sunways has developed new three-phase hybrid inverters for commercial and industrial (C&I) rooftop PV projects. You are welcomed to come to buy the latest selling, low price, and high-quality Sunways 25KW Three Phase Hybrid Inverter. We look forward to cooperating with you.
Send Inquiry
Product Description

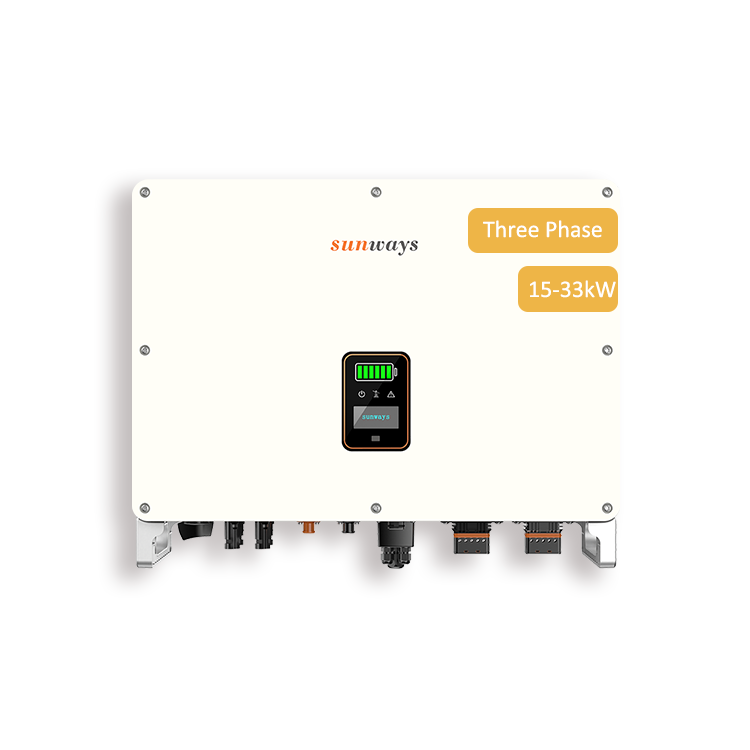

Sunways new three-phase hybrid inverters STH-15~33KTL have efficiency ratings of up to 98.2% and European efficiency ratings of 97.4%. They are available in seven versions, with power outputs ranging from 15 kW to 33 kW.High quality Sunways 25KW Three Phase Hybrid Inverter can meet many applications, if you need, please get our online timely service about it.
The STH 15-33kW series hybrid inverter includes 7 models which are listed below:
SUNWAYS STH 15~33KTL-HT
HYBRID SERIES | 2MPPTs | Three Phase
STH-15KTL-HT
STH-17KTL-HT
STH-20KTL-HT
STH-25KTL-HT
STH-29.9KTL-HT
STH-30KTL-HT
STH-33KTL-HT
The MPPT voltage range is 200 V to 850 V, with a maximum PV power input of 22.5 kW for the 15 kW Inverter and 49.5 kW for the 33 kW devices. The maximum input voltage is 1,000 V.
Sunways 25KW Three Phase Hybrid Inverter has an oversizing ratio of 1.5 times and offer high compatibility with a wide range of components.
Sunways 25KW Three Phase Hybrid Inverter has IP65-rated protection and operate within a temperature range of -30 C to 60 C. They come with lithium-ion batteries that have voltages ranging from 200 V to 800 V, supporting a maximum charge/discharge current of 50 A.
The hybrid solar system is usually composed of the PV array, hybrid inverter, lithium battery, loads and power grid. As shown in the following figure ：
Embrace a Sustainable Future with Hybrid Inverters!
Discover the advantages:
● Flexibility in Energy Balance
● Conquering Intermittency
● Enhanced Reliability
● Energy Efficiency
● Versatile Applications
Explore Sunways Hybrid Modes!
● General: PV + Battery + Grid
● UPS: Grid Backup
● Economic: Cost Optimization
● Off-grid: Nighttime Power
Technical Parameters
| Model | STH-15KTL-HT | STH-17KTL-HT | STH-20KTL-HT | STH-25KTL-HT | STH-29.9KTL-HT | STH-30KTL-HT | STH-33KTL-HT | |
| PV Input | Max. Input Power (W) | 24,000 | 27,200 | 32,000 | 40,000 | 47,840 | 48,000 | 52,800 |
| Start-up Voltage (V) | 135 | 135 | 135 | 135 | 135 | 135 | 135 | |
| Max. DC Input Voltage (V) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Rated DC Input Voltage (V) | 620 | 620 | 620 | 620 | 620 | 620 | 620 | |
| MPPT Voltage Range (V) | 200-850 | 200-850 | 200-850 | 200-850 | 200-850 | 200-850 | 200-850 | |
| Number of MPP Trackers | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Number of DC Inputs per MPPT | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Max. Input Current (A) | 32/32 | 32/32 | 32/32 | 32/32 | 32/32 | 32/32 | 32/32 | |
| Max. Short-circuit Current (A) | 40/40 | 40/40 | 40/40 | 40/40 | 40/40 | 40/40 | 40/40 | |
| backfeed current to the array (A) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Battery | Battery Type | Lithium battery (with BMS) | ||||||
| Battery communication mode | CAN/RS485 | |||||||
| Battery voltage range (V) | 135-800 | |||||||
| Maximum chargingcurrentfA) | 50 | |||||||
| Maximum discharge current (A) | 50 | |||||||
| Rated current of built-in fuse (A) | 125 | |||||||
| Output (Grid) | Rated Output Power (W) | 15,000 | 17,000 | 20,000 | 25,000 | 29,900 | 30,000 | 33,000 |
| Max. Output Power (W) | 16,500 | 18,700 | 22,000 | 27,500 | 29,900 | 33,000 | 36,300 | |
| AC output rated apparent power (VA) | 15,000 | 17,000 | 20,000 | 25,000 | 29,900 | 30,000 | 33,000 | |
| Max. Apparent Power (VA) | 16,500 | 18,700 | 22,000 | 27,500 | 29,900 | 33,000 | 36,300 | |
| Max. Input Apparent Power (VA) | 20,000① | 22,000① | 26,000① | 33,000① | 39,000① | 39,000① | 42,000① | |
| Rated Output Voltage (V) | 3L/N/PE, 230(400) | |||||||
| Rated AC Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |
| AC output rated current (A) | 21.7 | 24.6 | 29.0 | 36.2 | 43.3 | 43.5 | 47.8 | |
| Max. Output Current (A) | 25.0 | 28.3 | 33.3 | 41.7 | 49.8 | 50.0 | 55.0 | |
| Power Factor | 0.8 leading --- 0.8 lagging | |||||||
| Max. total harmonic distortion | <3% @Rated Output Power | |||||||
| DCI | <05%ln | |||||||
| Output (Back-up) | Rated Output Power (W) | 15,000 | 17,000 | 20,000 | 25,000 | 29,900 | 30,000 | 33,000 |
| Max. Output Power (W) | 16,500 | 18,700 | 22,000 | 27,500 | 29,900 | 33,000 | 36,300 | |
| Back-up output rated apparent power (VA) | 15,000 | 17,000 | 20,000 | 25,000 | 29,900 | 30,000 | 33,000 | |
| Max. Apparent Power (VA) | 16,500 | 18,700 | 22,000 | 27,500 | 29,900 | 33,000 | 36,300 | |
| Back-up output rated current (A) | 21.7 | 24.6 | 29.0 | 36.2 | 43.3 | 43.5 | 47.8 | |
| Max. Output Current (A) | 25.0 | 28.3 | 33.3 | 41.7 | 49.8 | 50.0 | 55.0 | |
| UPS switching time | <10ms | <10ms | <10ms | <10ms | <10ms | <10ms | <10ms | |
| Rated Output Voltage (V) | 3L/N/PE, 230 (400) | |||||||
| Rated AC Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |
| Voltage harmonic distortion | <3% @Linear load | |||||||
| Effeiciency | Max. Efficiency | 98.1% | 98.1% | 98.1% | 98.2% | 98.2% | 98.2% | 98.2% |
| European Efficiency | 97.3% | 97.3% | 97.3% | 97.4% | 97.4% | 97.4% | 97.4% | |
| MPPT Efficiency | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | |
| Max battery charging conversion efficiency | 97.2% | 97.2% | 97.2% | 97.3% | 97.3% | 97.3% | 97.3% | |
| Max battery discharge conversion efficiency | 97.2% | 97.2% | 97.2% | 97.3% | 97.3% | 97.3% | 97.3% | |
| Protection | |
| DC Reverse Polarity Protection | Integrated |
| Battery Input Reverse Connection Protection | Integrated |
| Insulation Resistance Protection | Integrated |
| DC Switch | Optional |
| Surge Protection | Integrated |
| Over-temperature Protection | Integrated |
| Residual Current Protection | Integrated |
| Islanding Protection | Frequency Shift, Integrated |
| AC Over-voltage Protection | Integrated |
| Overload Protection | Integrated |
| AC Short-circuit Protection | Integrated |
| General Data | |
| Over Voltage Category | PV: II ;Main: III |
| Dimensions (mm) | 600W*400H*280D |
| Weight (KG) | 45 |
| Protection Degree | IP65 |
| Self-consumption at Night (W) | <15 |
| Topology | Transformer less |
| Operating Temperature Range (℃) | -30-60 |
| Relative Humidity (%) | 0-100 |
| Operating Altitude (m) | 4000 (derating@ > 3000) |
| Cooling | Smart Fan Cooling |
| Noise Level (dB) | <50 |
| Display | OLED & LED |
| Communication | WiFi/LAN (Optional) |
Leading Features：
● Max. efficiency up to 98.2%.
● Up to 110% phase unbalanced output available on both on-grid and back-up outputs.
● Back-up paralleling available of up to 3 units.
● Fast and easy data checking and commissioning via App or OLED display.
● 200~800V wide battery connection range to store more energy and optimize self-sufficiency rate.
● Support continuous 110% AC output overloading on both on-grid and back up sides.
● Diversified work modes that are compatible with the majority of application scenarios.
● Uninterruptible power supply,switch to off-grid mode within 10ms.
Why should you consider Sunways for your solar needs?
● Exceptional Quality: Sunways prides itself on delivering solar solutions that stand the test of time, providing you with enduring value.
● Sustainability: We are dedicated to a greener future. Our products are designed with sustainability in mind, reducing your carbon footprint.
● Advanced Technology: Sunways harnesses cutting-edge technology to maximize energy efficiency and performance, giving you the best possible return on your investment.
Application：
Morning: low output, high demand
In the early morning, PV generation cannot meet the energy consumption, Sunways energy storage system will bridge the gap with the power stored in the battery in the previous day.
In the early morning, PV generation cannot meet the energy consumption, Sunways energy storage system will bridge the gap with the power stored in the battery in the previous day.
Midday: high output, low demand
PV generation is at its peak in the day time. But since nobody is at home and the energy consumption is very low, so most generated power will be stored in the battery of Sunways energy storage system.
PV generation is at its peak in the day time. But since nobody is at home and the energy consumption is very low, so most generated power will be stored in the battery of Sunways energy storage system.
Evening: high demand, zero output
The highest energy consumption in a day is at the evening and PV generates little even zero energy at this time. The Sunways energy storage system will bridge the gap with the power generated during the day.
The highest energy consumption in a day is at the evening and PV generates little even zero energy at this time. The Sunways energy storage system will bridge the gap with the power generated during the day.
