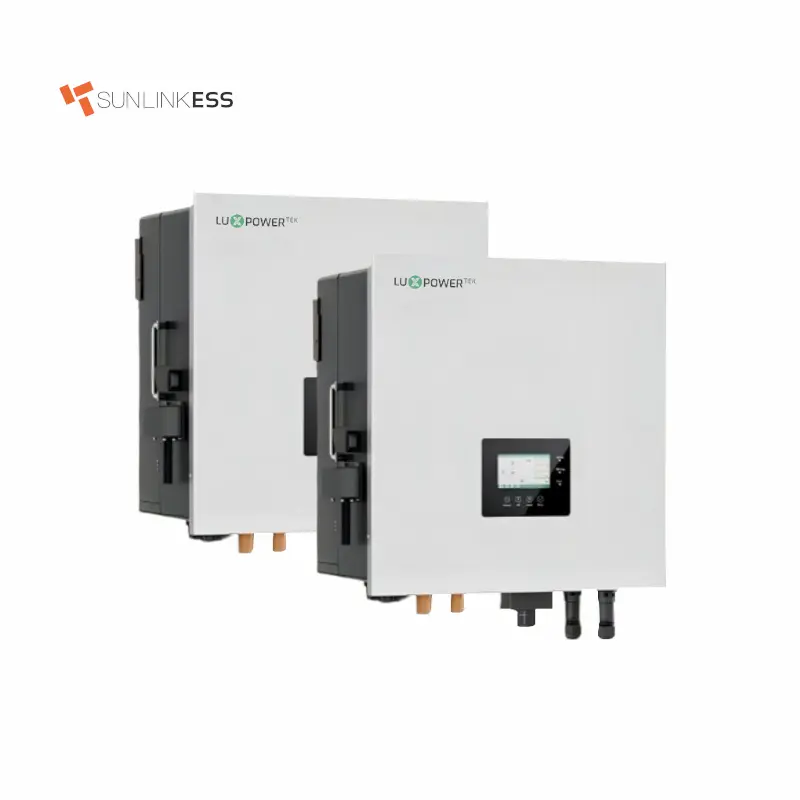

Luxpower GEN-LB-EU 7-10K
Latest upgrade to the hybrid inverter Luxpower GEN-LB-EU 7-10K series seamlessly adapts to diverse environments, setting the new standard for intelligent energy transformation.
Send Inquiry
Product Description
The latest Luxpower GEN-LB-EU 7-10K hybrid inverter series introduces cutting-edge features such as a generator interface and AC coupling, making it significantly more versatile for larger power demands.Whether for residential, commercial, or industrial use, Luxpower GEN-LB-EU 7-10K seamlessly adapts to a variety of environments, setting the standard for energy transformation.
| INPUT (PV DC) | GEN-LB-EU 7K | GEN-LB-EU 8K | GEN-LB-EU 10K |
| Max. PV array power(W) | 12000 | 12000 | 15000 |
| Rated PV input voltage(V) | 360 | ||
| Number of independent MPPT inputs | 2/(2:2) | ||
| PV input voltage range(V) | 100~600 | ||
| MPPT voltage range(V) | 120~500 | ||
| Start-up voltage(V) | 140 | ||
| Max. PV input current per MPPT(A) | 25 | ||
| Max. PV short-circuit current input per MPPT(A) | 34 | ||
| Battery | |||
| Compatible battery type | Lithium-ion/Lead-Acid | ||
| Rated battery voltage(V) | 48 | ||
| Battery voltage range(V) | 40~60 | ||
| Max. charge/discharge current(A) | 146 | 167 | 210 |
| Max. charge/discharge power(W) | 7000 | 8000 | 10000 |
| Force wake up battery from PV function(Y/N) | YES | ||
| Grid | |||
| Rated AC voltage(V) | 230 | ||
| Rated AC frequency(Hz) | 50/60 | ||
| Rated AC output current(A) | 30.4 | 34.7 | 43.5 |
| Rated AC output power(W) | 7000 | 8000 | 10000 |
| Max. AC intput power(W) | 15000 | ||
| PF | 0.99 (Adjustable from 0.8 leading to 0.8 lagging) | ||
| THDI | <3% | ||
| Max. continuous AC passthrough current(A) | 90 | ||
| UPS | |||
| Rated output power(W) | 7000 | 8000 | 10000 |
| Rated output voltage(V) | 230 | ||
| Rated output current(A) | 30.4 | 34.7 | 43.5 |
| Rated output frequency(Hz) | 50/60 | ||
| Surge power, duration | 2Pn, 0.5s | ||
| Switching time | <20ms | ||
| Wave form | Sine wave | ||
| THDV | <3% | ||
| Eciency | |||
| MPPT eciency | 99.9% | ||
| Max. eciency@PV to grid | 97.5% | ||
| Max. eciency@battery to grid | 94% | ||
| Max. charge/discharge eciency | 94% | ||
| Protection | |||
| PV reverse polarity protection | YES | ||
| Over current/voltage protection | YES | ||
| Anti-islanding protection | YES | ||
| AC Short-circuit current protection | YES | ||
| Leakage current protection | YES | ||
| Ground fault monitoring | YES | ||
| Grid monitoring | YES | ||
| DC Switch | YES | ||
| AC/DC Surge protection Type III | YES | ||
| General | |||
| Dimensions(W*H*D) | 536*556*290mm/21.1*21.9*11.4inch | ||
| Weight | 42.64kg/94lbs | ||
| Ingress protection rating | IP65/NEMA 4X | ||
| Relative humidity | 0~100% | ||
| Operating environment temperature range(°C) | -25~60 | ||
| Storage temperature range(°C) | -25~60 | ||
| Display & Communication interface | Touch color screen, RS485/Wifi/CAN | ||
| Warranty | 5 years | ||
| Cooling method | Smart cooling | ||
| Topology | Transformer-less | ||
| Altitude | <2000m | ||
| Noise emission(typical) | <50dB | ||
| Standard & Certification | |||
| G99, G100, NRS 097 | |||
Installation Instructions
Luxpower GEN-LB-EU 7-10K Hybrid Solar Solution
Integrates solar panels, battery storage, and grid connectivity into a smart, efficient, and reliable energy management system. With rising demand for energy independence, backup power, and peak shaving, hybrid systems are becoming the best choice for homeowners and businesses aiming to optimize energy use.

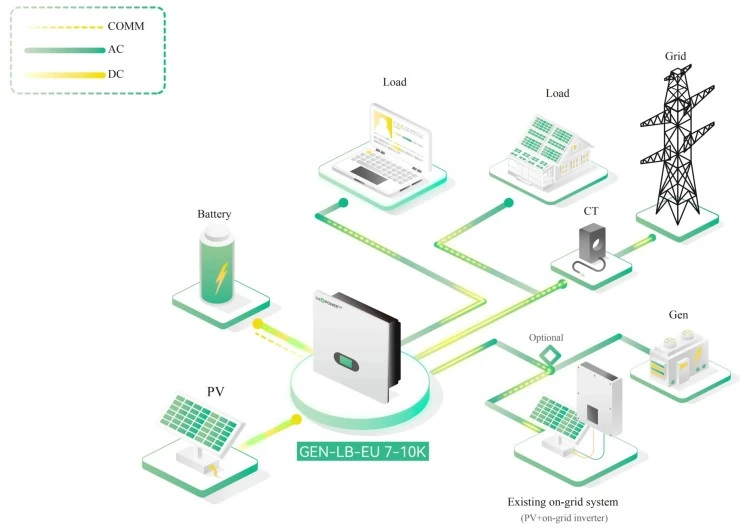

How Does Luxpower GEN-LB-EU 7-10K Hybrid Solar System Work?
✔ Solar Panels generate renewable energy during daylight hours.
✔ Battery Storage saves excess solar power for nighttime or backup use.
✔ Grid Connection guarantees power supply when solar or battery reserves run low.
✔ Smart Energy Management allows seamless switching between solar, battery, and grid power.

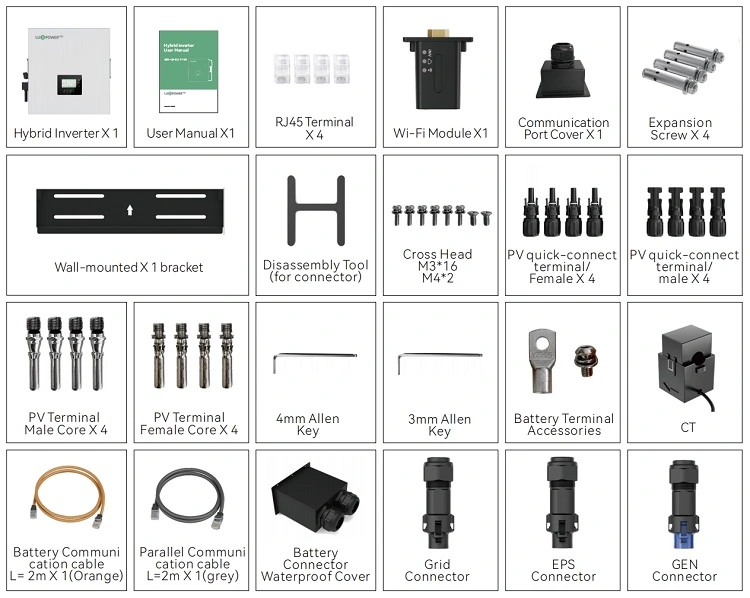

Product Packaging
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
You should have received the following items in the package:
