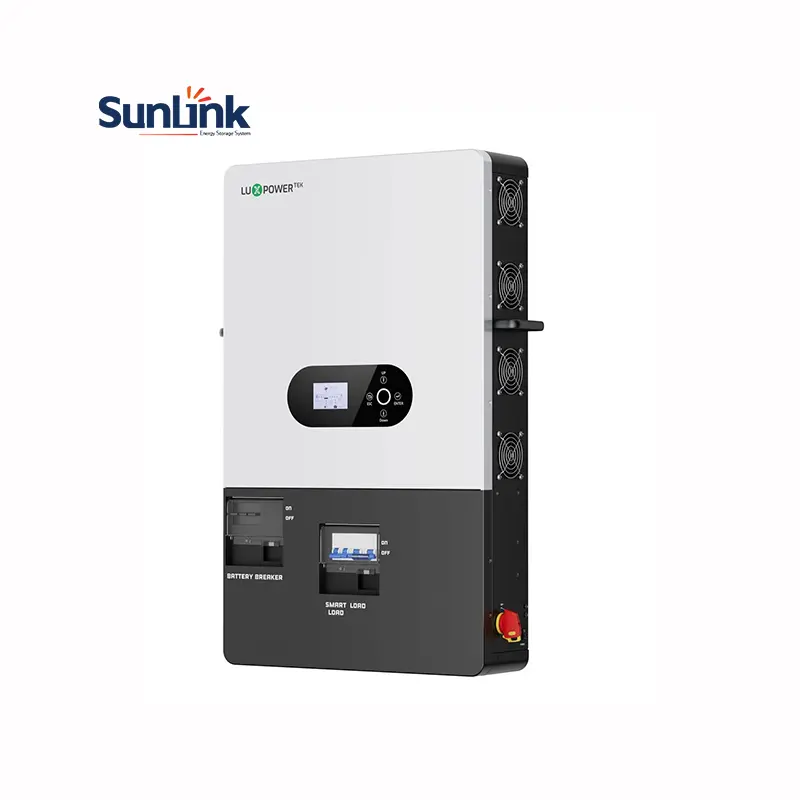

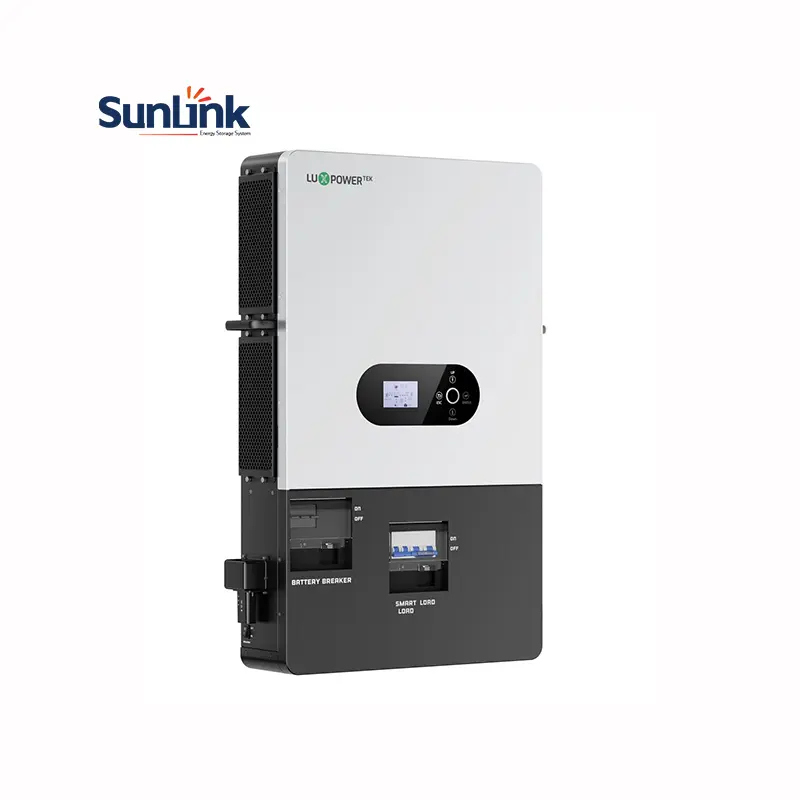

Luxpower SNA-US 12000
The stylish Luxpower SNA-US 12000 from Chinese manufacturer Sunlink is a powerful and efficient off-grid inverter solution designed specifically for the split-phase market. Made with high-quality raw materials, you can buy with confidence!
Send Inquiry
Product Description
Luxpower SNA US 12K
Off-grid split-Phase Inverter
- 240/120V off-grid split-phase output
- 2 MPPTs with 4 strings, Max. 24kW PV input
- Max. charge and discharge current: 250A
- AFCI Protection Integrated
- AC/Generator (input 240V or 120V) charge function
Luxpower SNA-US 12000 is a powerful and efficient off-grid inverter solution designed for the split-phase market.
Engineered for resilience, the Luxpower SNA-US 12000 features dual AC output ports for multi-load connectivity and a robust 100A continuous passthrough capability. Its dedicated generator port and seamless on-grid/off-grid transition ensure uninterrupted power supply in demanding conditions.
The system delivers intelligent energy management with comprehensive monitoring and adaptive operation modes, empowering users to optimize energy utilization effortlessly. Designed for reliability, Luxpower SNA-US 12000 combines high-performance hardware with advanced grid flexibility to support mission-critical backup and off-grid scenarios.
16pcs Parallel
With 16 units designed for parallel connections , this solution offers enhanced efficiency and flexibility for your power conversion needs.
Whether you're integrating solar panels, batteries, or other renewable energy systems, the '16 parallel connections' design ensures seamless operation and optimized performance. Whether you are a professional or a DIY enthusiast, this product will be your ideal choice.

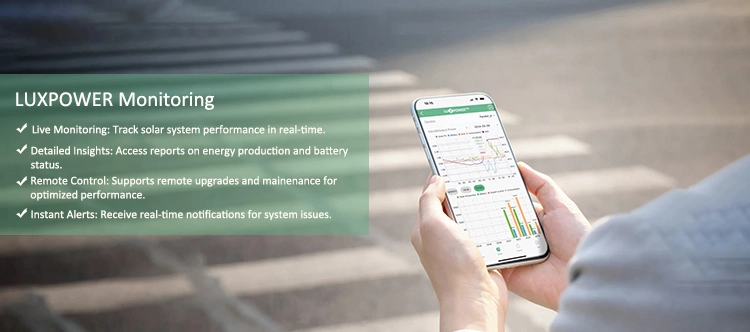

Simplify your monitoring experience

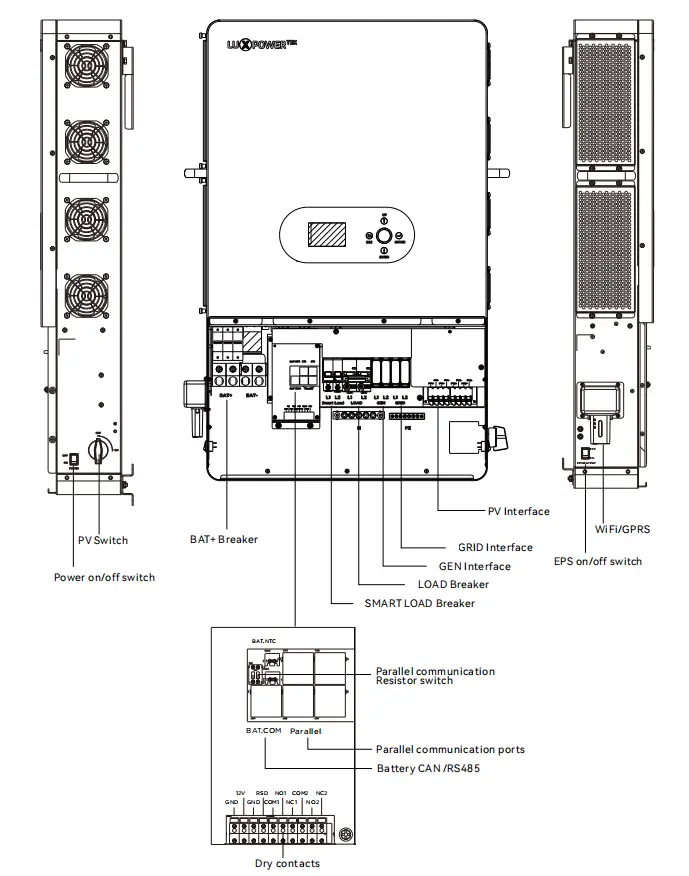

Product Details
Product Parameter
| INPUT (PV DC) | SNA US 12000W |
| Max. PV array power (W) | 24000 (12000/12000) |
| Rated PV input voltage (V) | 320 |
| Number of independent MPPT inputs | 2/(2:2) |
| PV input voltage range (V) | 100~480 |
| MPPT voltage range (V) | 120~385 |
| Start-up voltage (V) | 100 |
| Max. PV input current per MPPT (A) | 35/35 |
| Max. PV short-circuit current input per MPPT (A) | 44/44 |
| Battery | |
| Compatible battery type | Lithium-ion/Lead-Acid |
| Rated battery voltage (V) | 48/51.2 |
| Battery voltage range (V) | 46.4-60/38.4-60 |
| Max. charging / discharging current (A) | 250 |
| Max. charging / discharging power (W) | 12000 |
| Force wake up battery from PV and Grid function | YES |
| Grid | |
| Rated AC voltage (V) | 110/220; 120/240 |
| Acceptable input voltage range (V) | 90~280 |
| Rated AC frequency (Hz) | 60/50 |
| Rated AC intput current (A) | 105@220V/100@240V |
| Rated AC intput power (W) | 24000 |
| PF | 0.99 |
| THDI | <5% |
| Max. continuous AC passthrough current(A) | 100 |
| UPS | |
| Rated output power (W) | 12000 |
| Rated output voltage (V) | 110/220; 120/240 |
| Rated output current (A) | 54@220V/50@240V |
| Rated output frequency (Hz) | 50/60 |
| Surge power, duration | 2Pn, 5s |
| Switching time (UPS) | <10ms@Single and Parallel |
| Wave form | Sine wave |
| THDV | 3% |
| GEN | |
| Acceptable input voltage range | 110/220; 120/240 |
| Max. AC input voltage (V) | 280 |
| Max. AC input current (A) | 63 |
| Rated input frequency | 50Hz/60Hz (Auto detection) |
| Transfer time | <10ms@Single; <20ms@Parallel |
| THDV | <3% |
| Overload protection | 5s@≥150% load /10s@110%~150% load |
| Efficiency | |
| Max. efficiency | 93.5% |
| Max. charging / discharging efficiency | 93.0% |
| Max. MPPT efficiency | 99.0% |
| Protection | |
| PV reverse polarity protection(Y/N) | YES |
| Over current / voltage protection(Y/N) | YES |
| AC Short-circuit current protection(Y/N) | YES |
| Grid monitoring(Y/N) | YES |
| DC switch(Y/N) | YES |
| DC Surge protection Type lll | YES |
| AC Surge protection Type lll | YES |
| Battery reverse polarity protection(Y/N) | YES |
| RSD / AFCI monitoring(Y/N) | YES |
| UPS/Battery breakers integrated | YES |
| General | |
| Dimensions ( W*H*D mm ) | 530*830*150mm (17.72*25.59*5.9inch) |
| Weight | 45kg/99.2lbs |
| Ingress protection rating | IP20 |
| Operating environment temperature range(°C) | 0~45 |
| Storage temperature range(°C) | -15~60 |
| Relative humidity | 5%~95% |
| Display & Communication interface | LCD+RGB, RS485 / Wifi / CAN |
| Warranty | 2 years |
| Cooling method | Smart cooling |
| Topology on AC / Battery side | Transformer-less / Transformer |
| Altitude (m) | <2000 |
| Noise emission (typical) | <50dB |
| Standard & Certification | |
| / | |

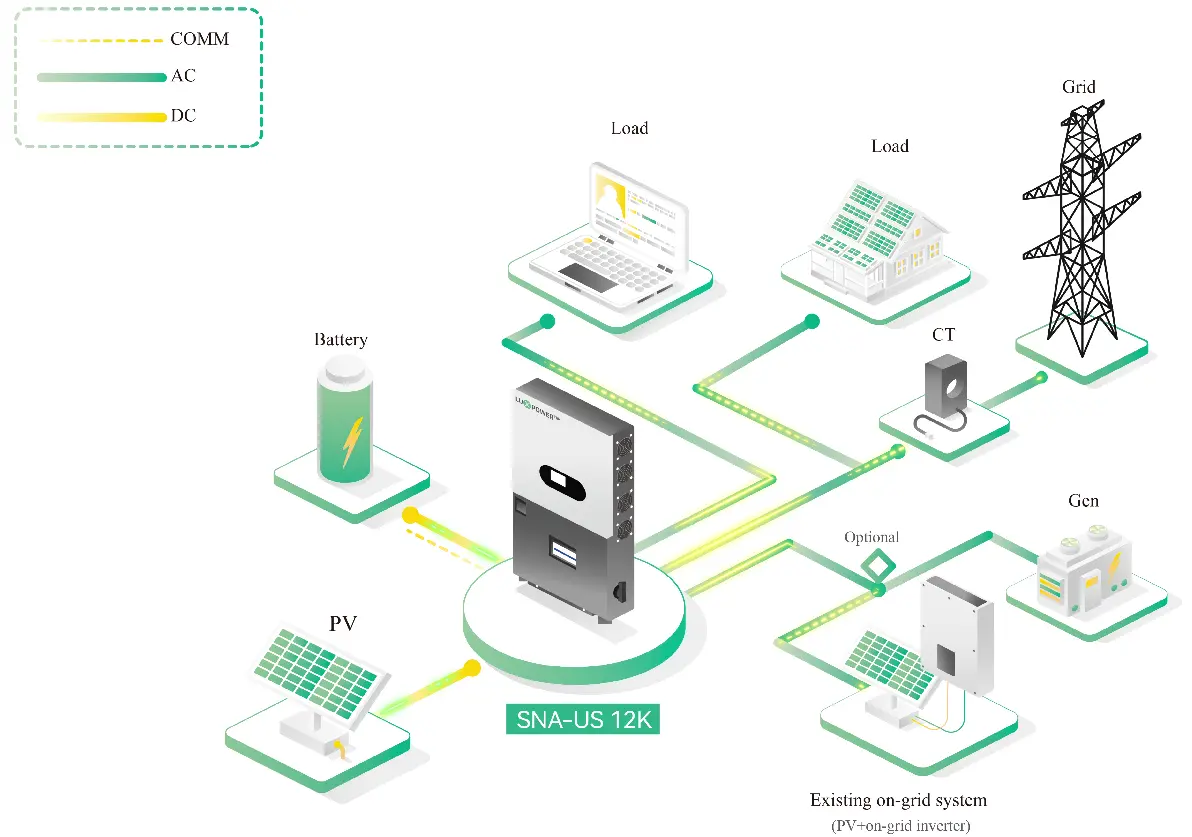

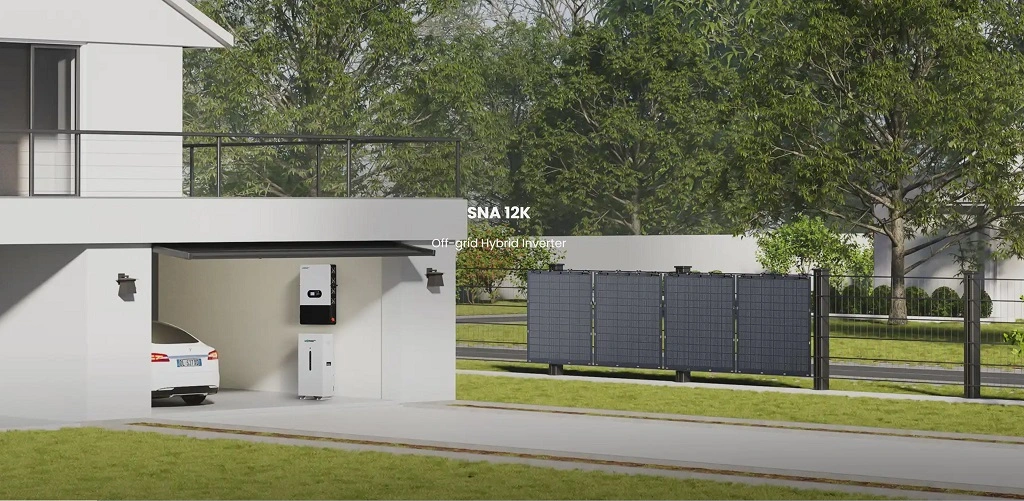

Application
Luxpower SNA-US 12000 split-phase off-grid system offers versatile operating modes to meet various energy demands. In grid-connected mode, Luxpower SNA-US 12000 optimizes energy usage to reduce electricity bills. In off-grid mode, Luxpower SNA-US 12000 ensures continuous power supply during outages. The hybrid mode seamlessly integrates solar, generator, and grid inputs for maximum efficiency. This flexibility allows the Luxpower SNA-US 12000 to adapt to different scenarios, providing reliable and cost-effective energy solutions for any situation.

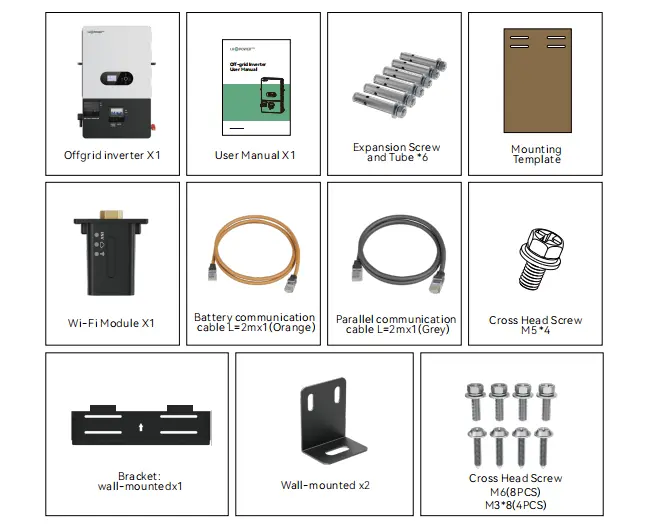

Packing List
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
You should have received the following items in the package:
